We offer the customized frequency & output power as customer need
for the anti drone UAV signal jammer module
* Also, the mobile phone, WIFI, GPS signal jammer module is offered too.

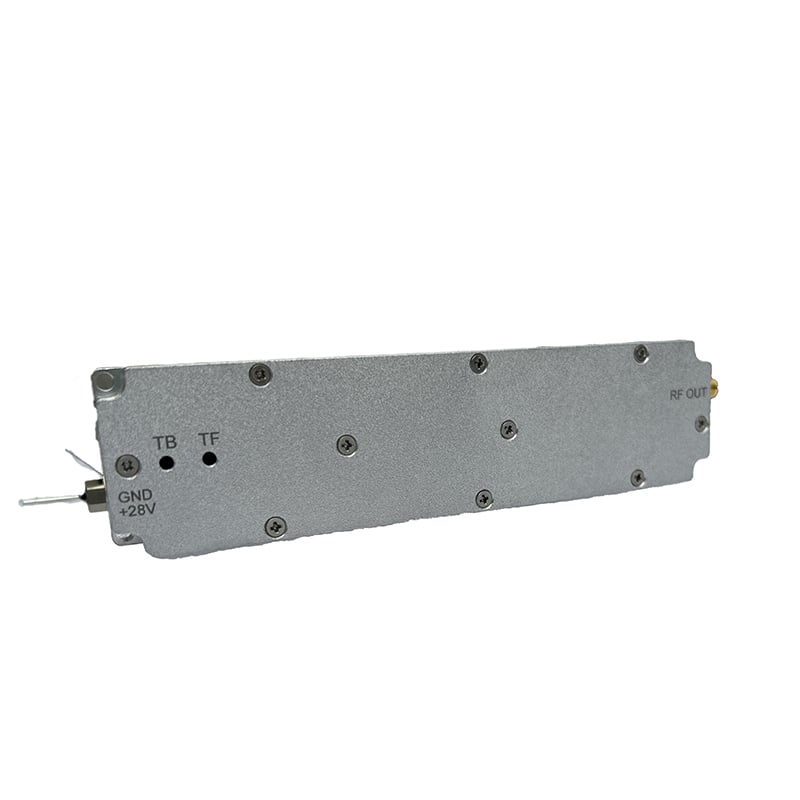

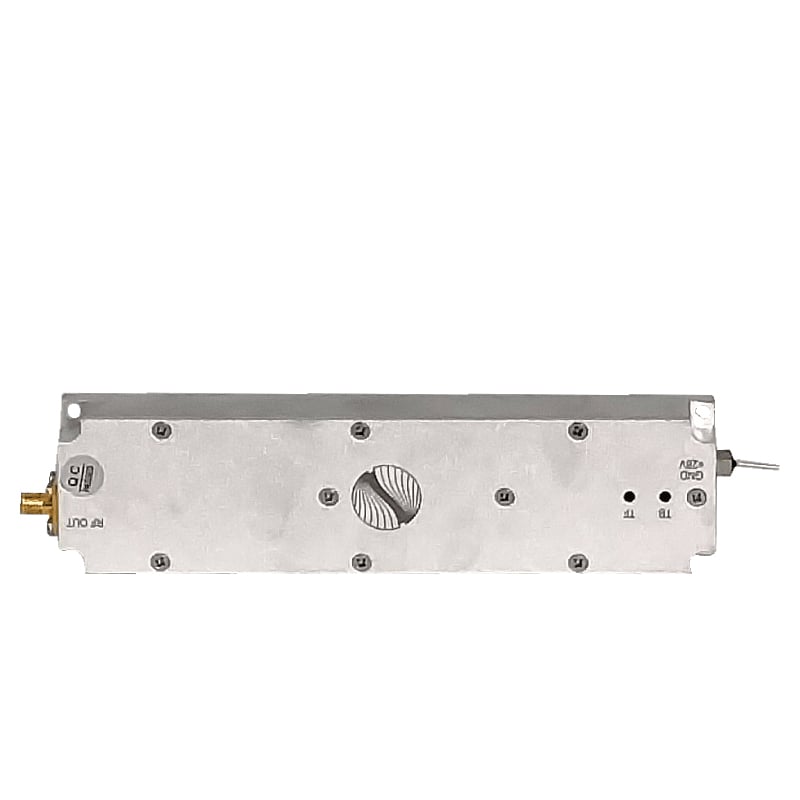

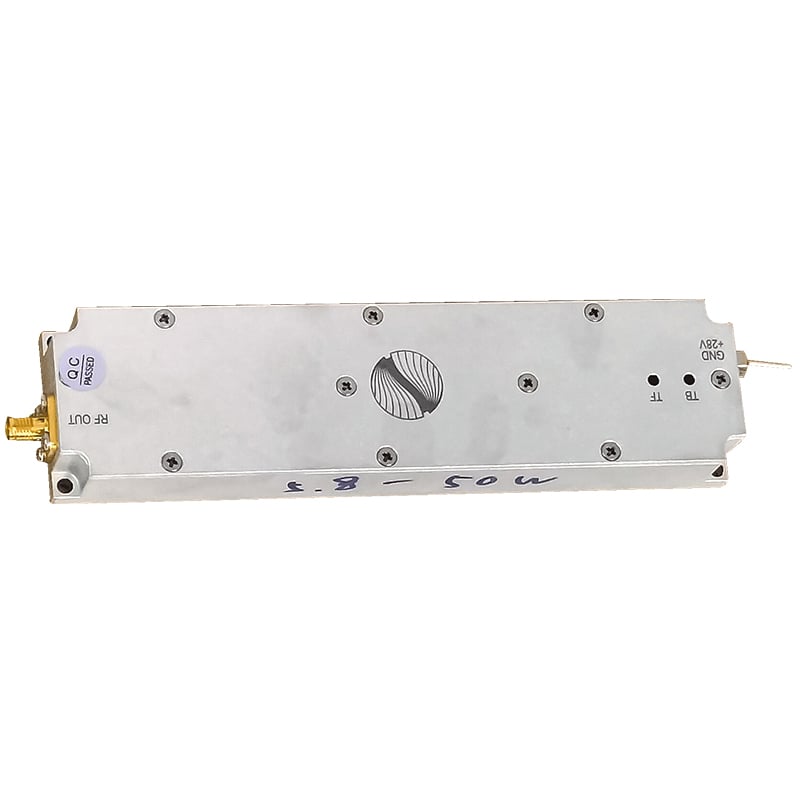

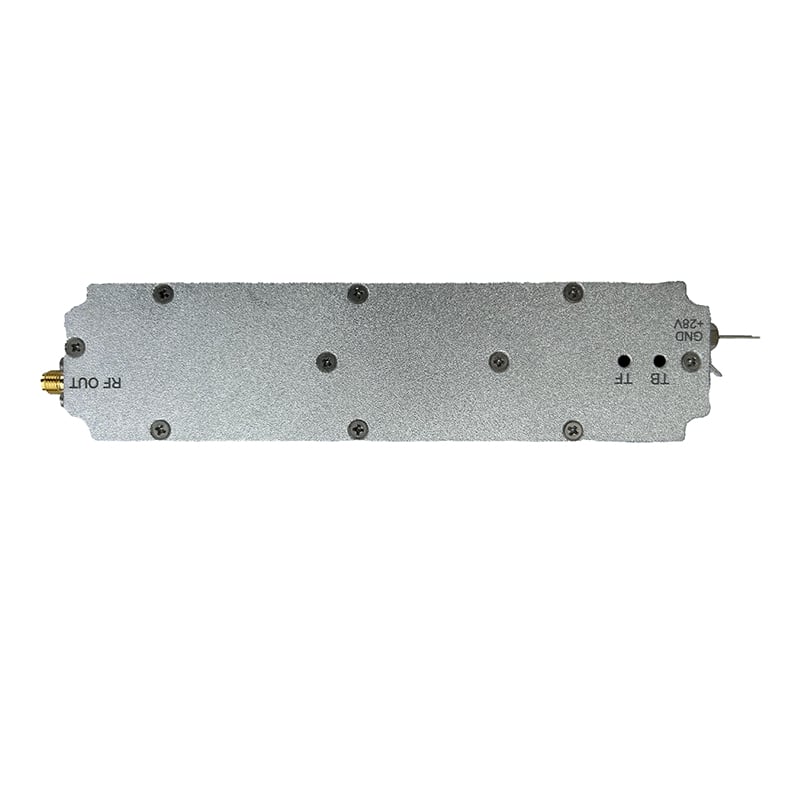

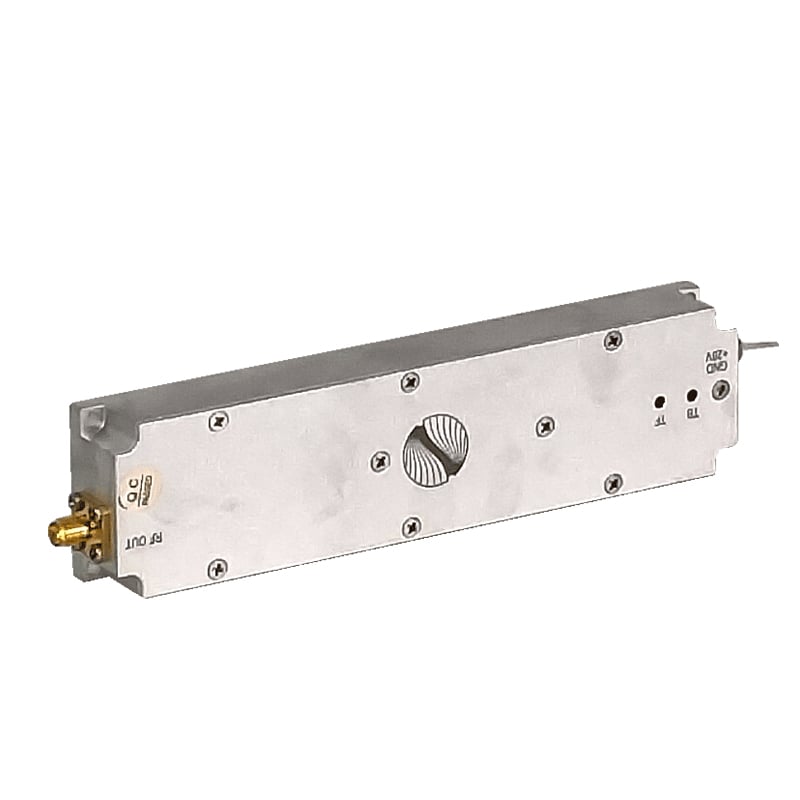

433 900 1. 2 1. 5G GPS WIFI 2. 4G 5. 2G 5. 8G Anti Drone Signal Jammer Module
| Indicators | Parameter |
| Working frequency | 5720-5850MHz |
| Gain | ≥47dBm |
| Max output | ≥47dBm |
| Output CWsaturation power | ≥50W |
| Including inside gainflatness | ≤1. 5dBm |
| Working current | ≤4A |
| Output port standing wave | ≤2. 0 |
| Clutter suppression | ≥65dBm |
| Harmonic suppression | ≥11dBm |
Rf output interface | SMA |
| 27V power supply port | Feedthru Capacitor / Red black wire |
| Sweep frequency | 60-250KHz |
| VCC Power supply reference | 24V-27V |
| Max Voltage | +30V |
| Weight | 0. 25kg |
| Installation dimensions | 143*28mm |
| Overall dimensions | 153*38*20mm |
| Operating temperature | -25℃ ~ +55℃ |
| Installation | Installing radiator for testing of power amplifier |
