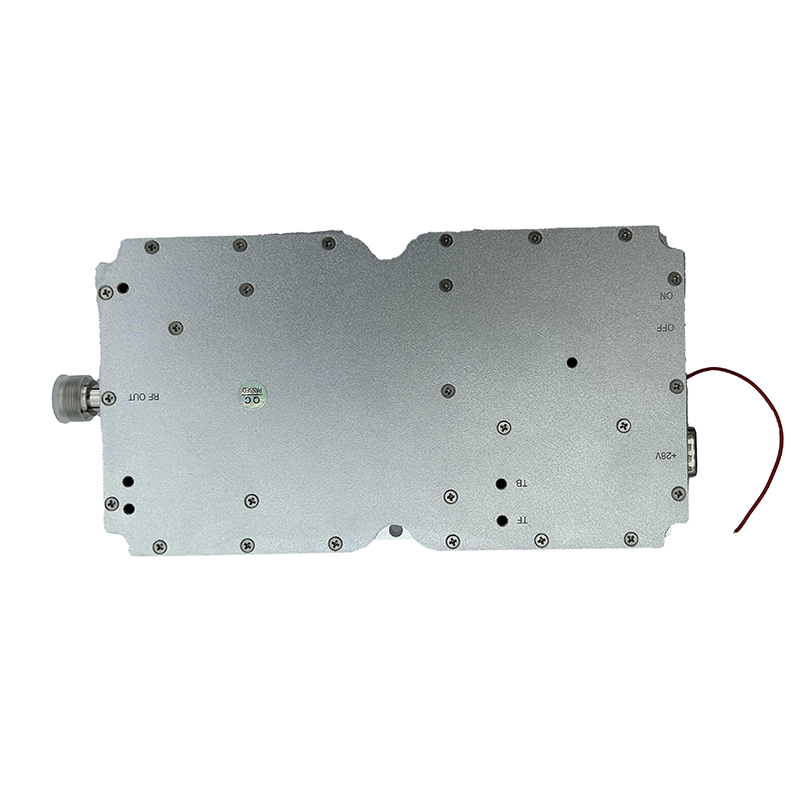

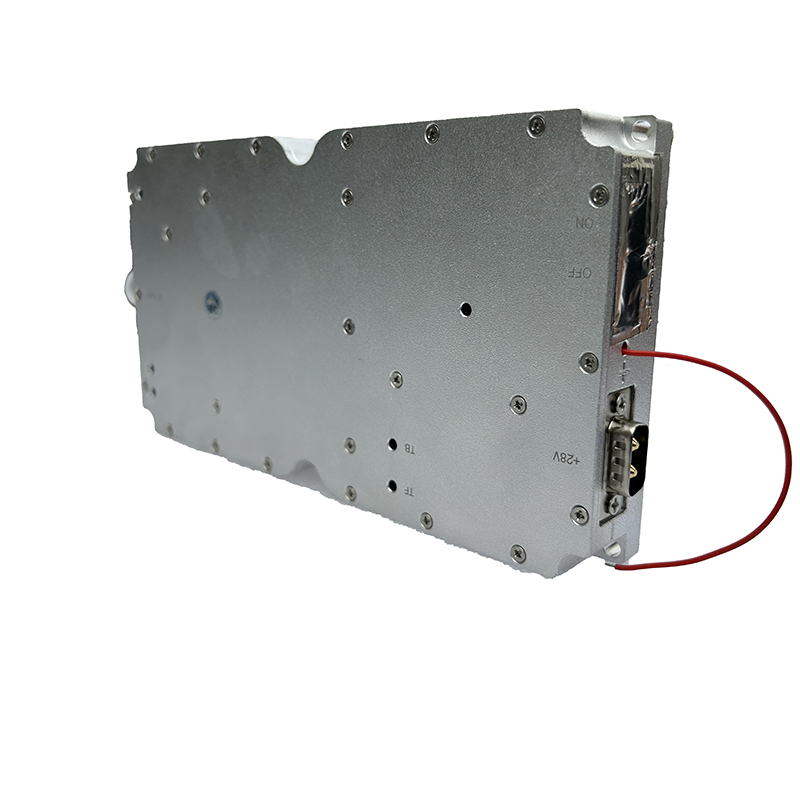

Customized RF Power Amplifier, 433MHz 100W RF Power Amplifier , Anti Drone RF Power Module.
We offer the customized frequency & output power as customer need for the anti drone UAV signal jammer module.
* Also, the mobile phone, WIFI, GPS signal jammer module is offered too.
433 900 1. 2 1. 5G GPS WIFI 2. 4G 5. 2G 5. 8G Anti Drone Signal Jammer Module
Indicators |
Parameter |
Working frequency |
420-450MHz |
Gain |
≥50dBm |
Max output |
≥50dBm |
Output CW saturation power |
≥100W |
Including inside gain flatness |
≤1±0. 5dBm |
Working current |
≤8-12A |
Output port standing wave |
≤1. 5 |
Clutter suppression |
≥65dBm |
Harmonic suppression |
≥11dBm |
Rf output interface |
Female N |
27V power supply port |
2W2 pin |
Sweep frequency |
60-250KHz |
VCC Power supply reference |
24V-27V |
Max Voltage |
+30V |
Weight |
1kg |
Installation dimensions |
182*93mm |
Overall dimensions |
199*110*28mm |
Operating temperature |
-25℃~ +55℃ |
Installation |
Installing radiator for testing of power amplifier |
