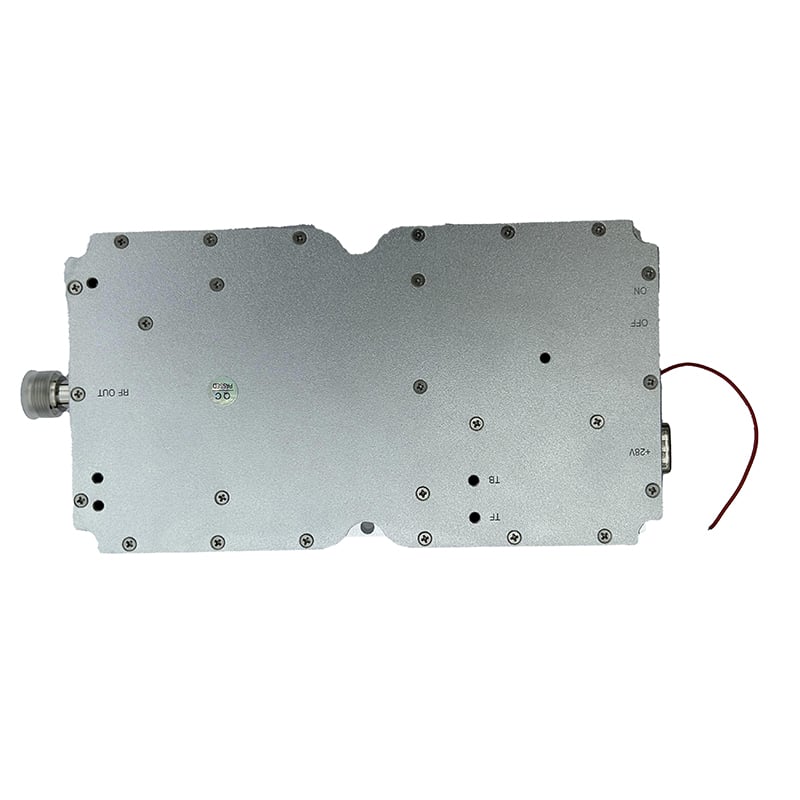

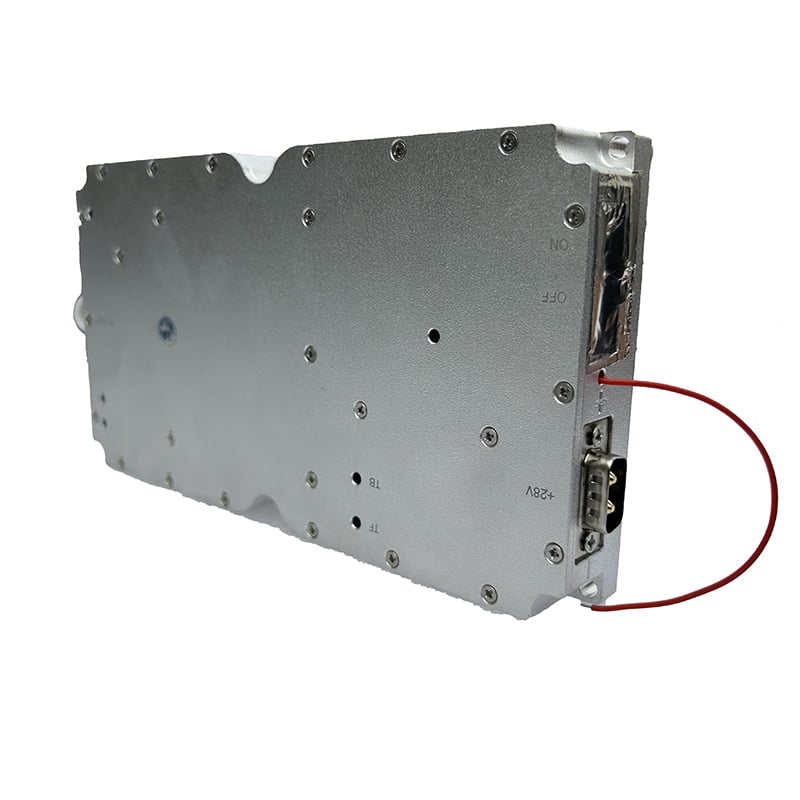

Customized RF Power Amplifier, 2.4G 100W RF Power Amplifier , Anti Drone RF Power Module.
We offer the customized frequency & output power as customer need for the anti drone UAV signal jammer module
* Also, the mobile phone, WIFI, GPS signal jammer module is offered too.
433 900 1.2 1.5G GPS WIFI 2.4G 5.2G 5.8G Anti Drone Signal Jammer Module.
Indicators |
Parameter |
Working frequency |
2400-2500MHz |
Gain |
≥47dBm |
Max output |
≥47dBm |
Output CW saturation power |
40-50W |
Including inside gain flatness |
≤1.5dBm |
Working current |
≤4A |
Output port standing wave |
≤2.0 |
Clutter suppression |
≥65dBm |
Harmonic suppression |
≥11dBm |
Rf output interface |
SMA |
27V power supply port |
Feedthru Capacitor / Red black wire |
Sweep frequency |
60-250KHz |
VCC Power supply reference |
24V-27V |
Max Voltage |
+30V |
Weight |
0.35kg |
Installation dimensions |
117*50mm |
Overall dimensions |
127*60*22mm |
Operating temperature |
-25℃ ~ +55℃ |
Installation |
Installing radiator for testing of power amplifier |
